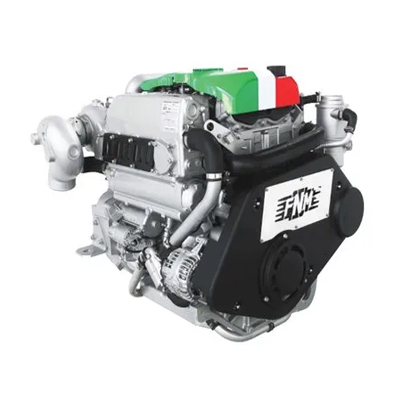

Diesel Engine – Marine – 270-250-225-180 hp-FNM-30HPE



The diesel engine is an intermittent-combustion piston-cylinder device. It operates on either a two-stroke or four-stroke cycle. However, unlike the spark-ignition gasoline engine, it induces only air into the combustion chamber on its intake stroke.

Diesel Engine – Marine Product Description

Engine designation30HPE 27030HPE 25030HPE 22530HPE 180
Max Power kw (hp)198.5 (270)184 (250)165 (225)132 (180)
Engine speed min-141003800
Torque Max Nm @ rpm530 Nm @ 2300
No. of cylinderInline-4
Displacement2.934 cc
Bore x Stroke mm95.8 x 104
Dry weight Kg320
Cooling SystemAqua
CombustionDirect injection common rail
Aspirationsupercharged and inter-cooled
EmissionRCD Stage 2
Dimension mm x mm x mm730 (l) x 750 (w) x 753 (h)
