Description
The diesel engine is an intermittent-combustion piston-cylinder device. It operates on either a two-stroke or four-stroke cycle. However, unlike the spark-ignition gasoline engine, it induces only air into the combustion chamber on its intake stroke.

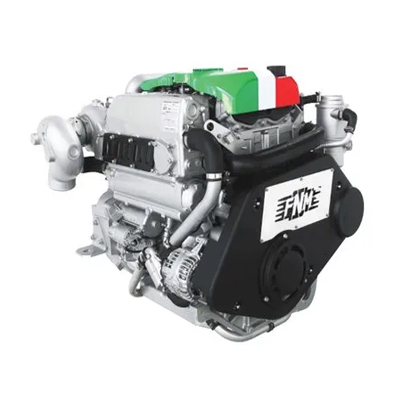

Diesel Engine – Marine Product Description
| Engine designation | 30HPE 270 | 30HPE 250 | 30HPE 225 | 30HPE 180 |
| Max Power kw (hp) | 198.5 (270) | 184 (250) | 165 (225) | 132 (180) |
| Engine speed min-1 | 4100 | 3800 | ||
| Torque Max Nm @ rpm | 530 Nm @ 2300 | |||
| No. of cylinder | Inline-4 | |||
| Displacement | 2.934 cc | |||
| Bore x Stroke mm | 95.8 x 104 | |||
| Dry weight Kg | 320 | |||
| Cooling System | Aqua | |||
| Combustion | Direct injection common rail | |||
| Aspiration | supercharged and inter-cooled | |||
| Emission | RCD Stage 2 | |||
| Dimension mm x mm x mm | 730 (l) x 750 (w) x 753 (h) | |||
